Hub/ratchet detail footage.
Gravel

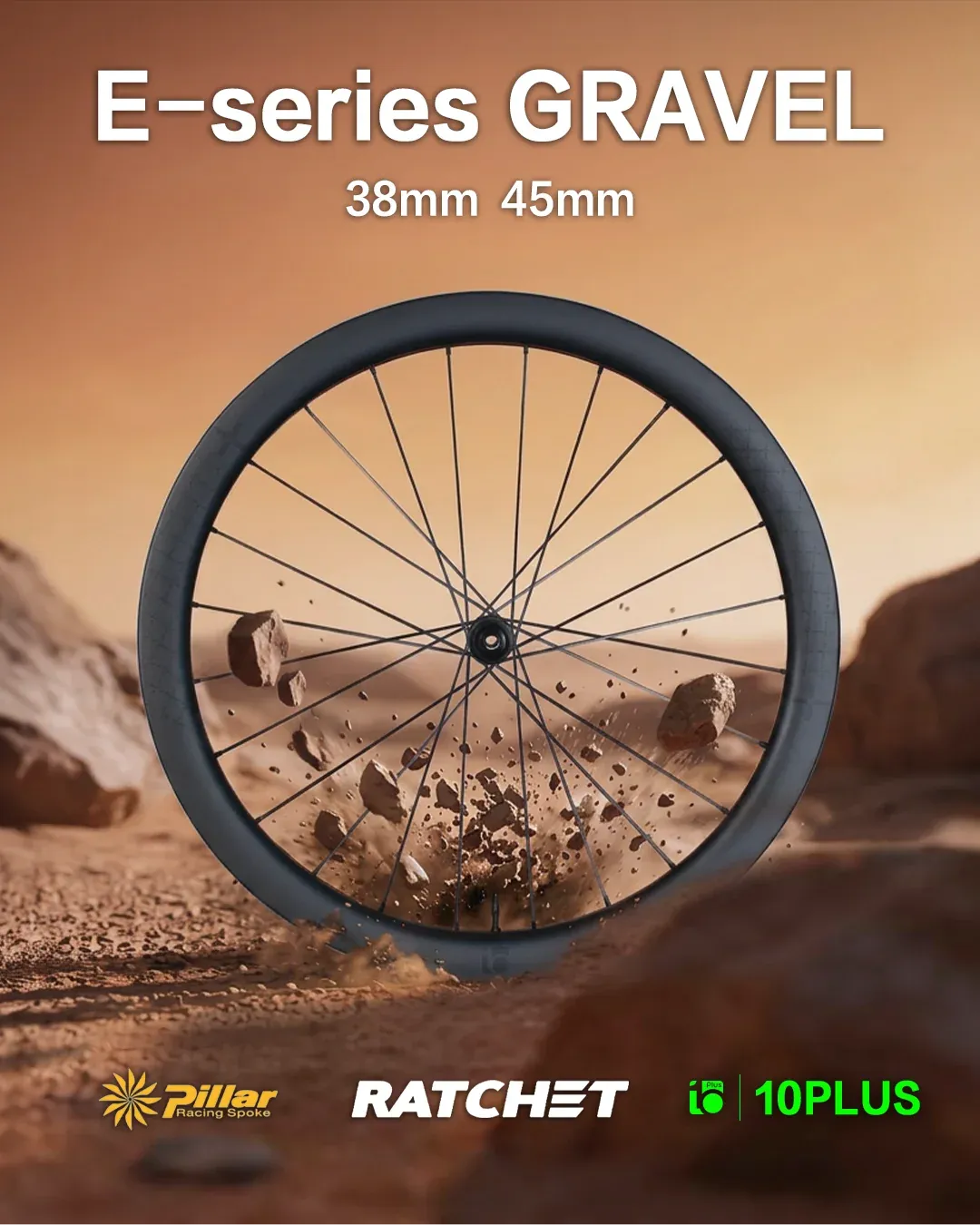

10PLUS Gravel E Series
Lighter gravel, ceramic hub, quicker engagement.
Ceramic bearings and the 45T ratchet carry over from the road E Series, in a rim built for 38–45mm gravel use. Per 10PLUS’s own spec sheets it’s 120g lighter than the T Series Gravel at 38mm and 155g lighter at 45mm.
$574.00
Upcoming price: $429.79
★ 5.0 · 10 reviews
🔥 35 units sold in the last 180 days (100.0% positive feedback)

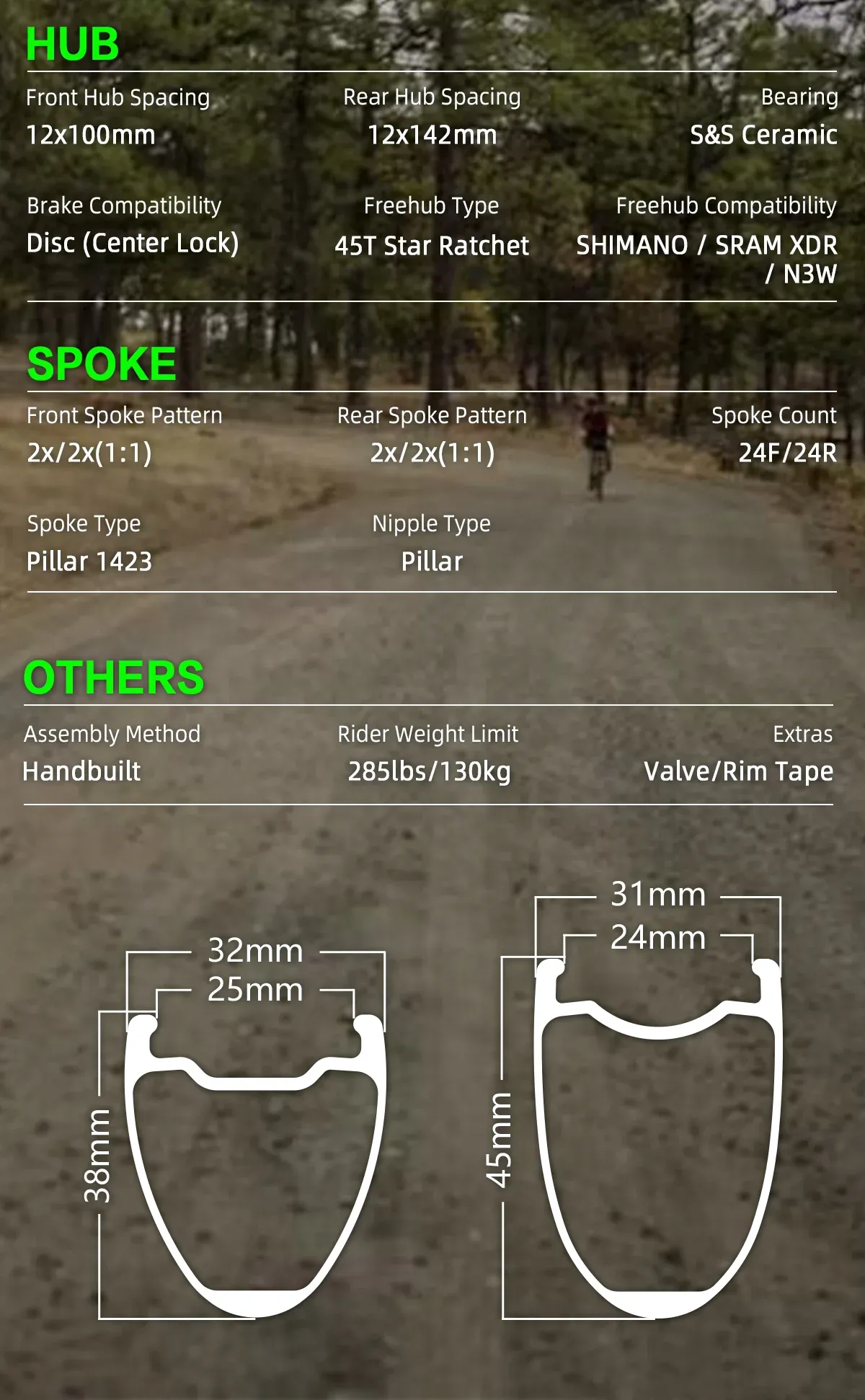

Quick Specs
- Category: Gravel
- Weight from: 1440g

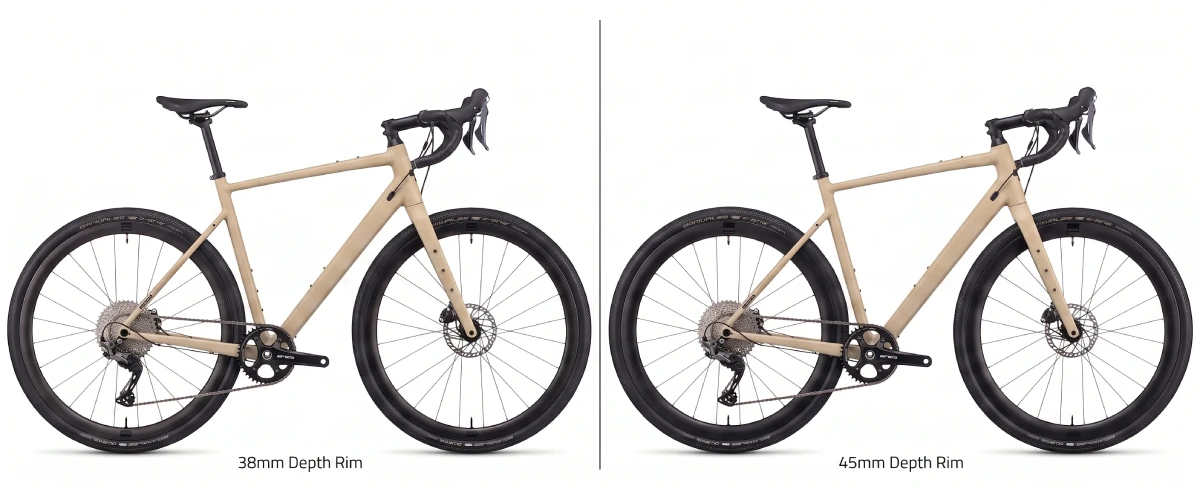

- Depths: 38/45mm

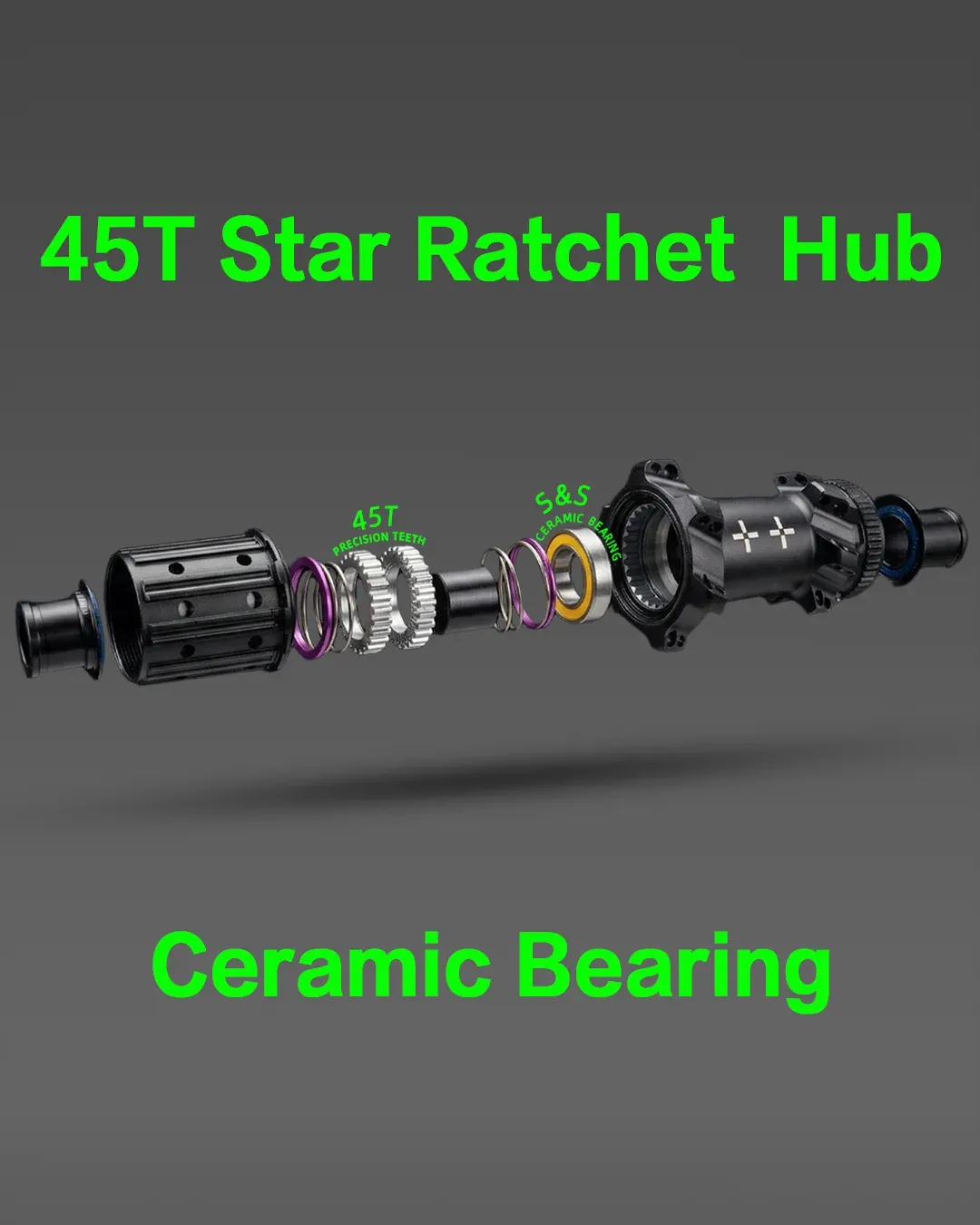

- Hub: 45T Star Ratchet, 8° engagement
- Bearings: Ceramic
- Rim width: 25mm internal / 32mm external
- Freehub Compatibility: Shimano HG (Hyperglide), Shimano MS (Micro Spline), SRAM XDR
- Axle: 12x100mm front, 12x142mm rear
- Rotor mount: Center Lock, disc only
- Spokes: Pillar 1423 bladed aero spokes, Pillar DSN nipples
- Rim material: Toray T700/T800 carbon fibre
- Warranty: 1200 days rim / 365 days hub / 180 days spokes
Buy Now on AliExpress
🎫 Available Discount Coupons
10PLUS Store Coupons
Spend US $1.05, Get US $1.05 off (excludes shipping costs)
Spend US $224.7, Get US $5.24 off (excludes shipping costs)
Spend US $224.7, Get US $5.24 off (single-use, excludes shipping costs)
⏰ The “11.11 Singles Day” sale starts in 4 days. Add the wheels to your AliExpress cart now to lock in stock, then grab the coupons so they're ready at checkout when it kicks off.
Grab the coupons now to use later →How to maximize savings
- Open the product page.
- Collect store coupons.
- Collect any active sale-event coupons.
- Proceed to the checkout. Apply the exclusive discounts at checkout.
- That's it!
Full walkthrough: How to stack store + AliExpress coupons →
Not sure which freehub you need?
Match it to your cassette, not your bike brand or groupset name.
The 10-second test
Look at the smallest cog on your current cassette.
11 teeth, Shimano cassette → Shimano HG (Hyperglide)
10 teeth, Shimano cassette → Shimano MS (Micro Spline)
10 teeth, SRAM cassette → SRAM XDR
Or check your spec details. For example, a Shimano Deore CS-M6200, 10-51T cassette has a 10-tooth smallest cog, so it needs Shimano MS (Micro Spline). A Shimano CS-R7100 / CS-R8100, 11-30T or 11-34T cassette has an 11-tooth smallest cog, so it needs Shimano HG (Hyperglide).
| Your drivetrain | Typical cassette | Freehub needed |
|---|---|---|
| Shimano road 11-speed | 11-28 / 11-30 / 11-34 | Shimano HG (Hyperglide) |
| Shimano road 12-speed | 11-30 / 11-34 / 11-36 | Shimano HG (Hyperglide) |
| Shimano GRX 2x12 | 11-34 / 11-36 | Shimano HG (Hyperglide) |
| Shimano GRX 1x12 | 10-45 | Shimano MS (Micro Spline) |
| Shimano GRX 1x12 | 10-51 | Shimano MS (Micro Spline) |
| Shimano MTB 12-speed | 10-45 / 10-51 | Shimano MS (Micro Spline) |
This is a starting reference, not exhaustive — always check your exact cassette model if you're unsure, since spec changes between model years. See also: the full bike-fit checklist · Shimano HG or Shimano MS?
What 10PLUS Highlights
Key features straight from 10PLUS’s own product listing.

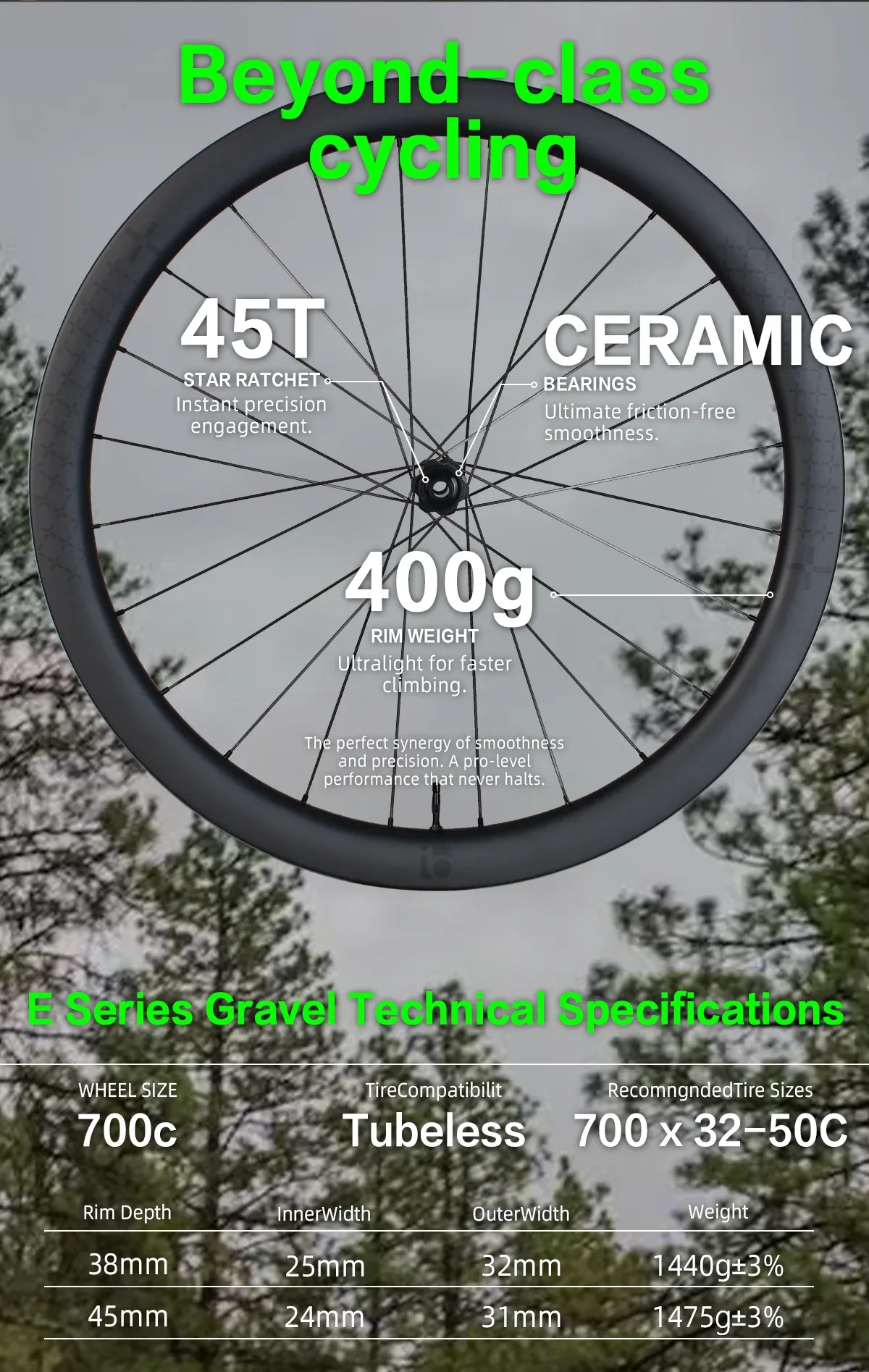

- 10PLUS's own spec table lists 400g claimed rim weight, 700x32-50C recommended tyre range, and tubeless compatibility.

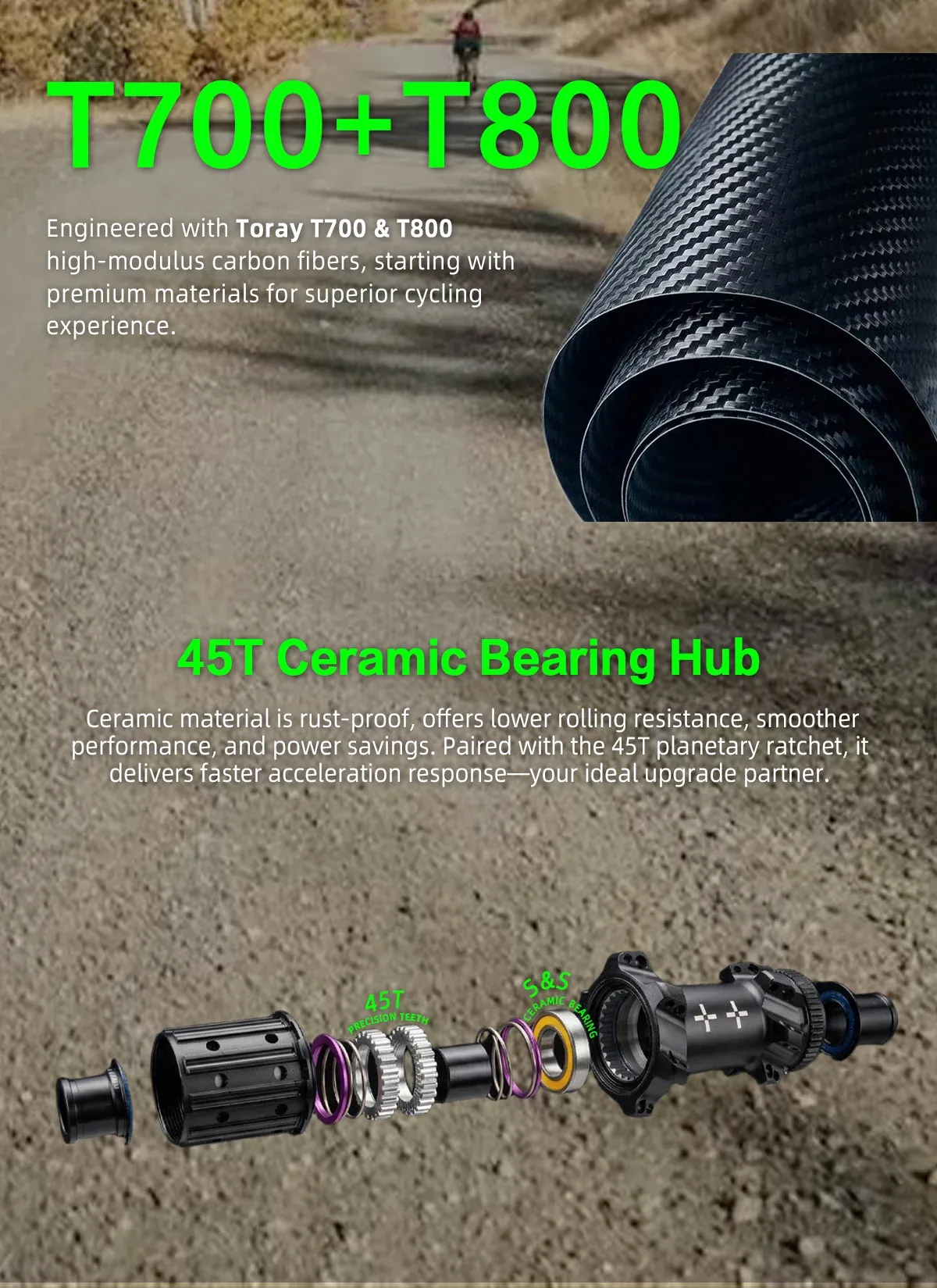

- 45T Star Ratchet paired with ceramic bearings, described by 10PLUS as "the perfect synergy of smoothness and precision."

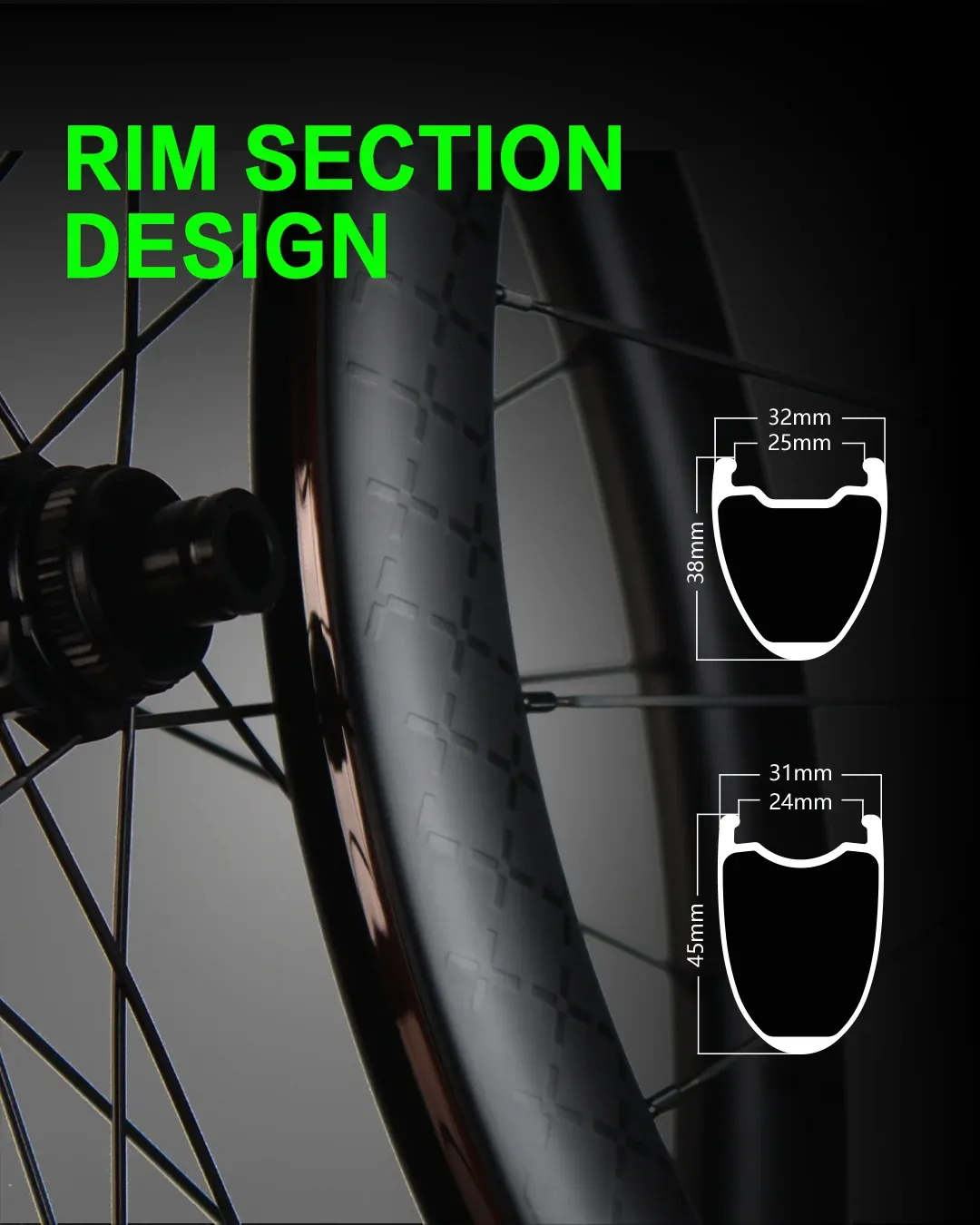

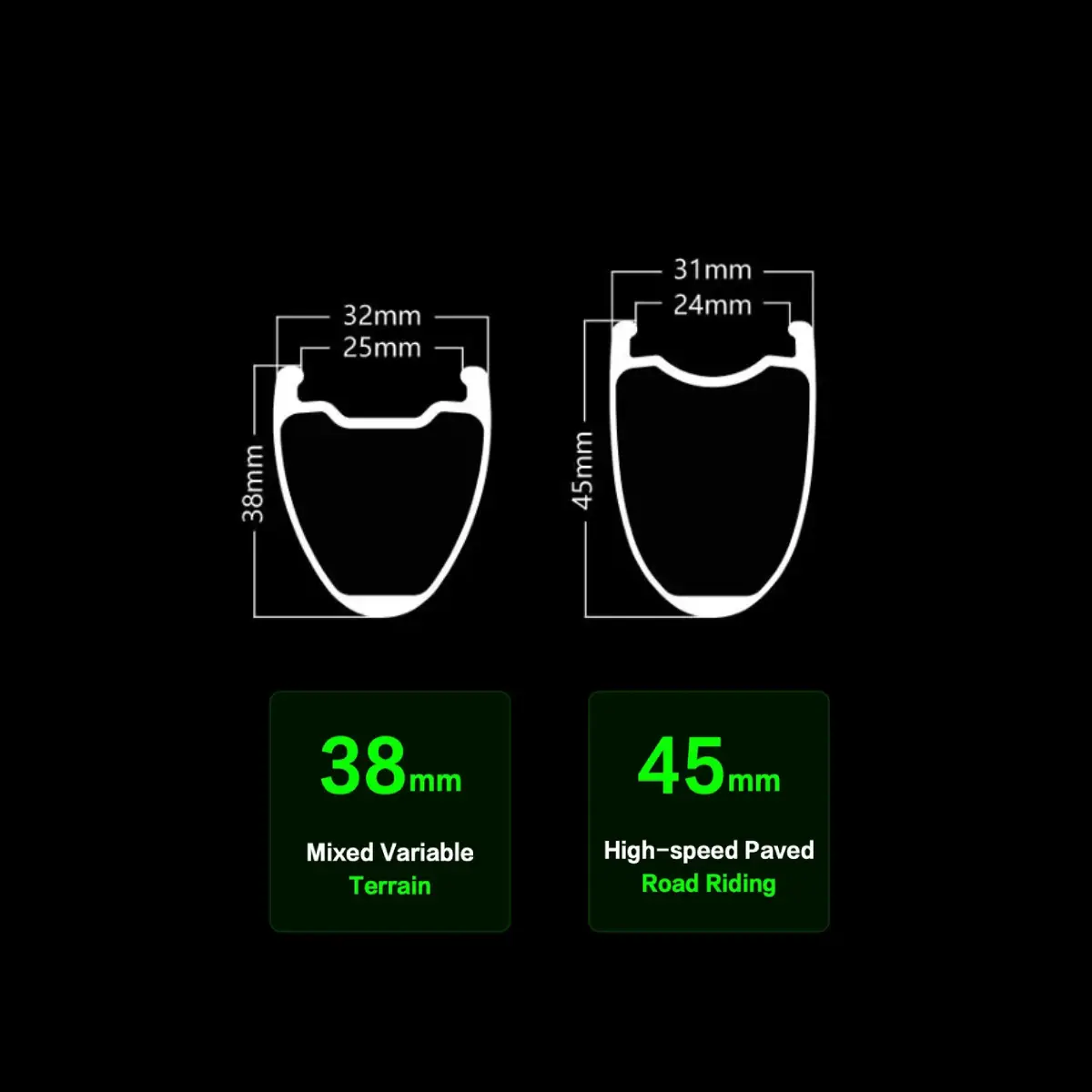

- Rim width/weight by depth per the official spec table: 38mm = 25mm internal / 32mm external / 1440g±3%, 45mm = 24mm internal / 31mm external / 1475g±3% — matches the figures listed above.

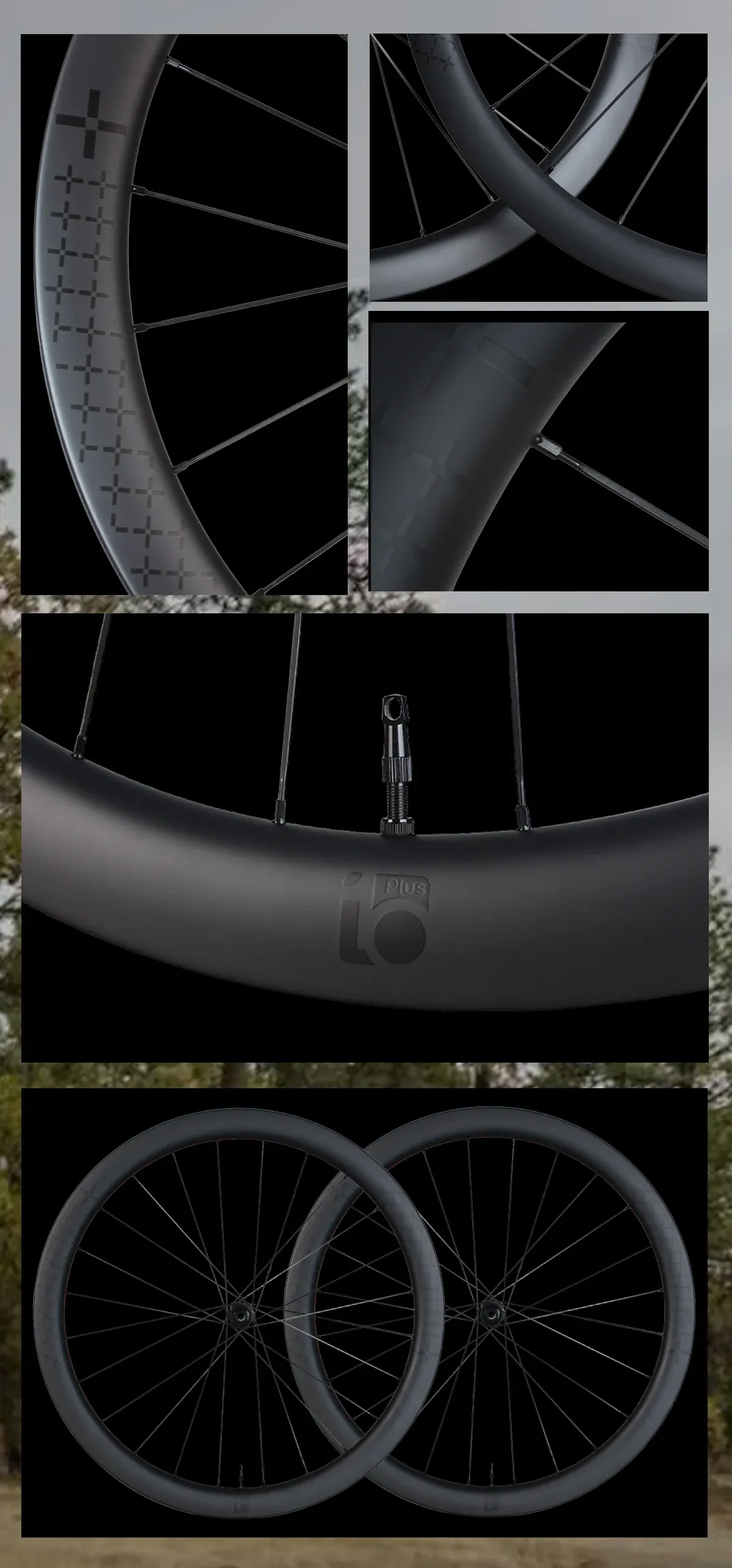

Full Product Gallery
The complete set of images from the AliExpress listing, in order — the same detail you'd scroll through there, without the giant single screenshot.
Tubeless setup
Arrives with rim tape and valves fitted on the units independent reviewers have torn down. Still worth checking tape seal before mounting tyres.
Rim tape and valve installation.
Quality control

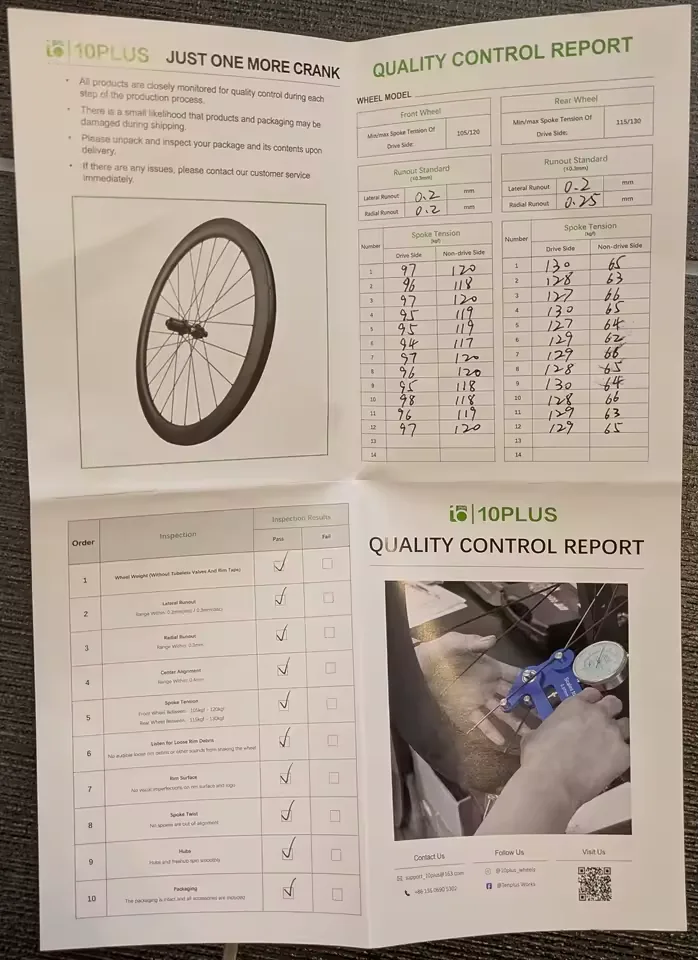

10PLUS says every wheel goes through the same QC process — impact testing, stress relief treatment, and a per-wheel inspection card with printed tolerances. See the QC videos and certificates →
Hub engagement sound (36T vs 45T)
Listen to the acoustic difference: the video starts with the standard T Series (36T) sound and switches over to the E Series (45T) engagement profile.
Star ratchet freehub acoustic comparison (36T standard vs 45T premium).
Real-world use
It combines the road E Series hub — ceramic bearings and 45T ratchet — with the wider gravel rim of the T Series Gravel, on the same Pillar spoke build used across the range.
What's good
- + Lighter than the T Series Gravel with quicker 45T engagement
- + Ceramic bearings resist the grit-and-wash-off duty cycle gravel riding puts on a hub
What to weigh up
- − Only two depth options (38mm, 45mm)
- − $100 premium over the T Series Gravel
Where these numbers come from
Every claim on this page is traceable. Here are the specific sources behind this model's specifications, reviews, and data points:

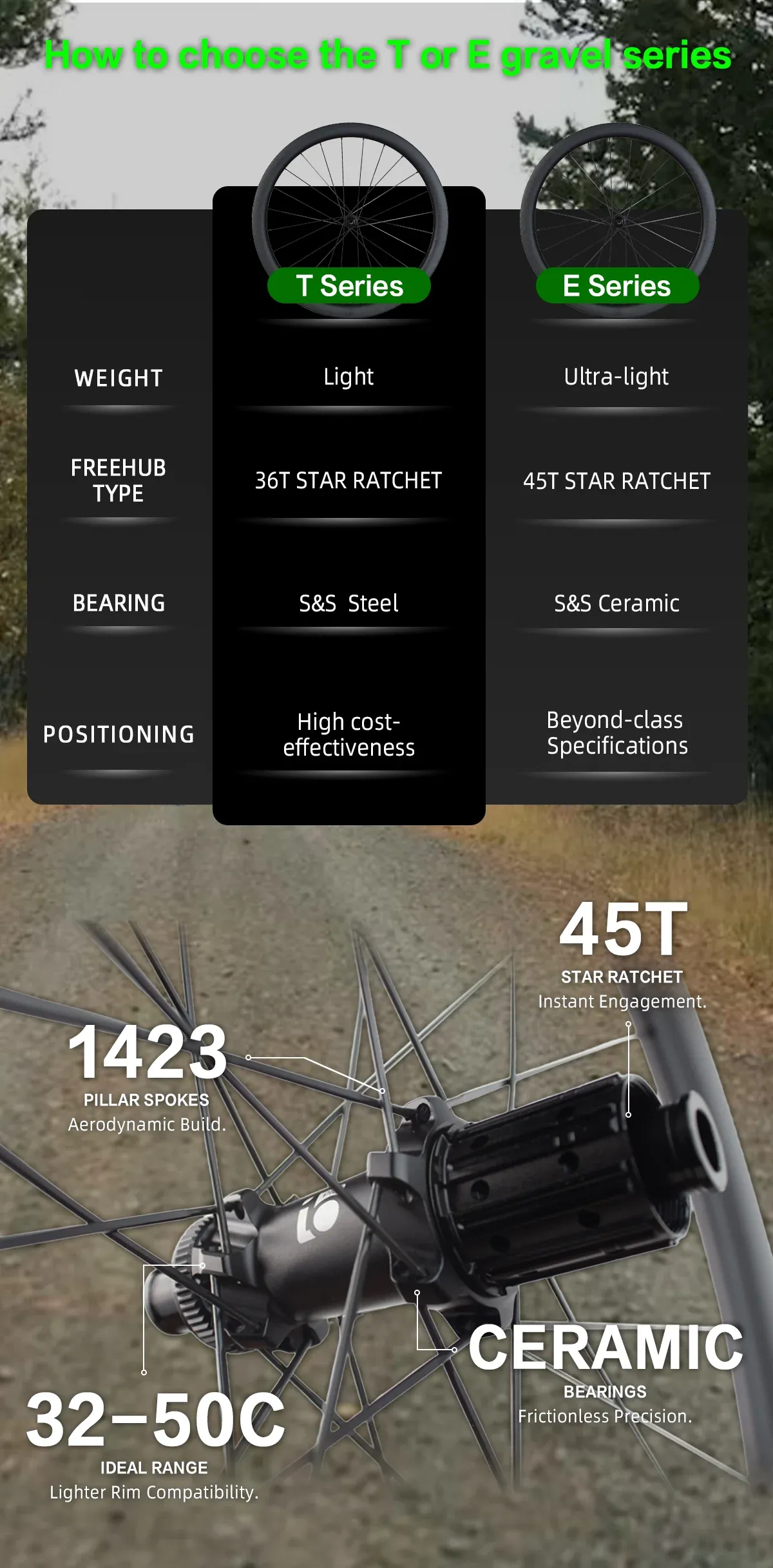

How this compares to the 10PLUS Gravel T Series
Both are just road or gravel, then 36T steel or 45T ceramic — the whole range comes down to that one choice.
View 10PLUS Gravel T Series →Transform Your Gravel Rig: 5 Essential Upgrades
Skip the overpriced boutique gear. Dial in your gravel rig with these five proven, high-value components that punch way above their price tag on the dirt.

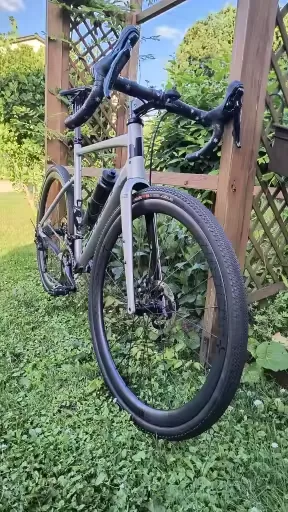

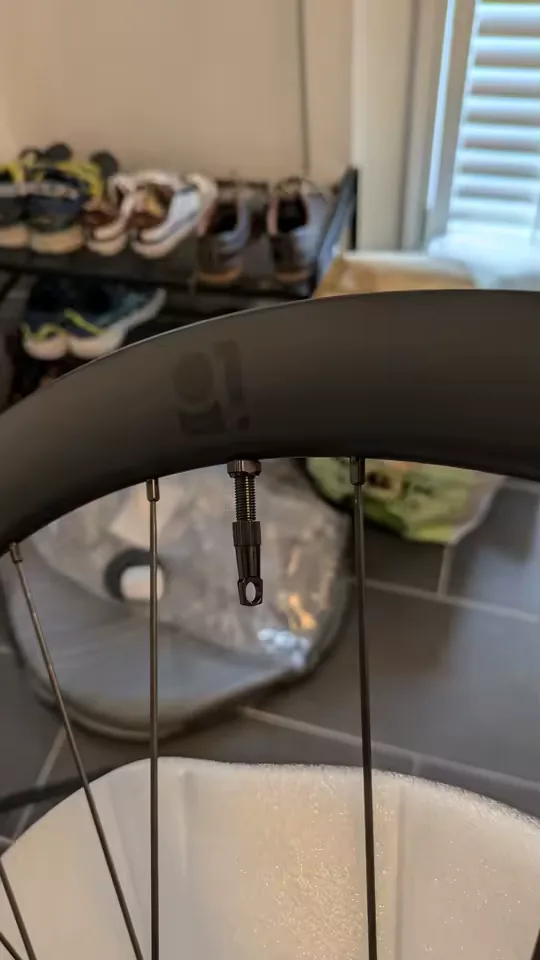

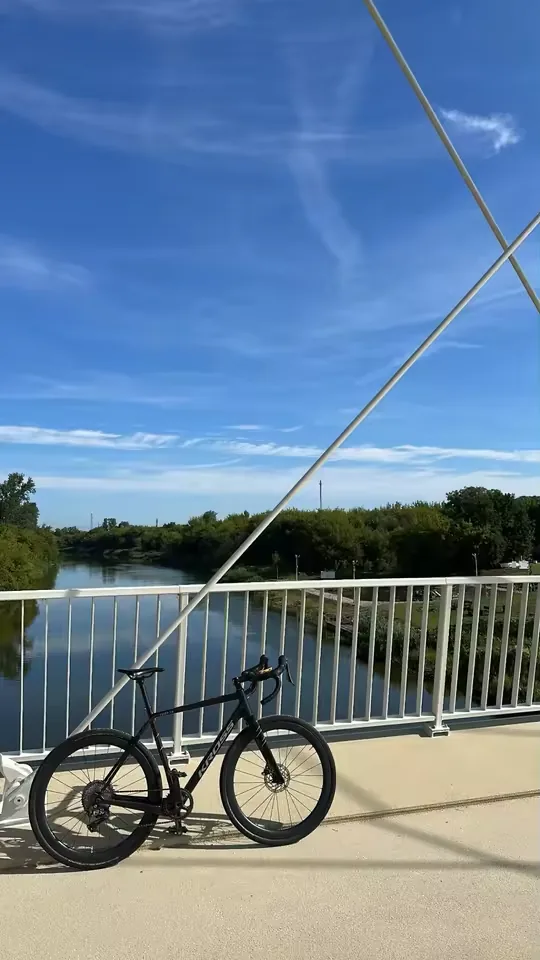

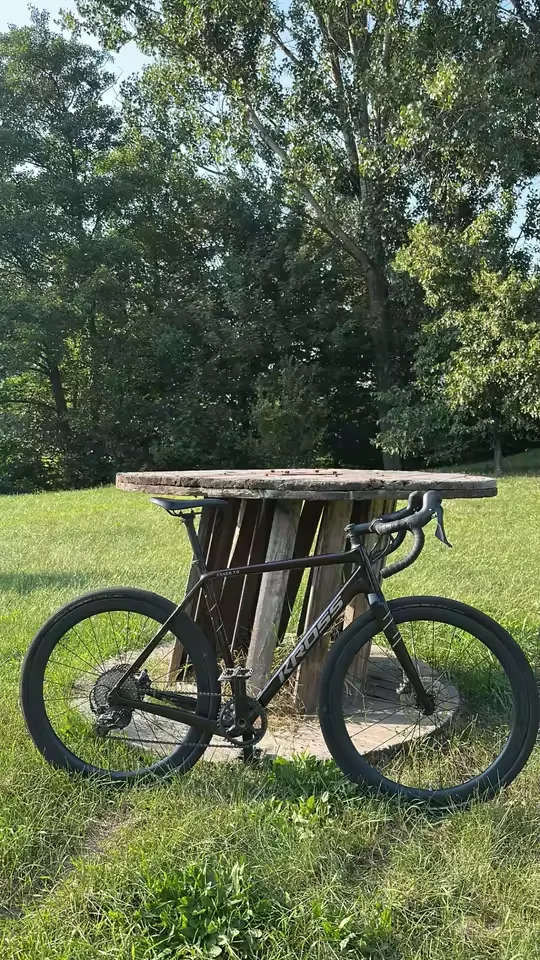

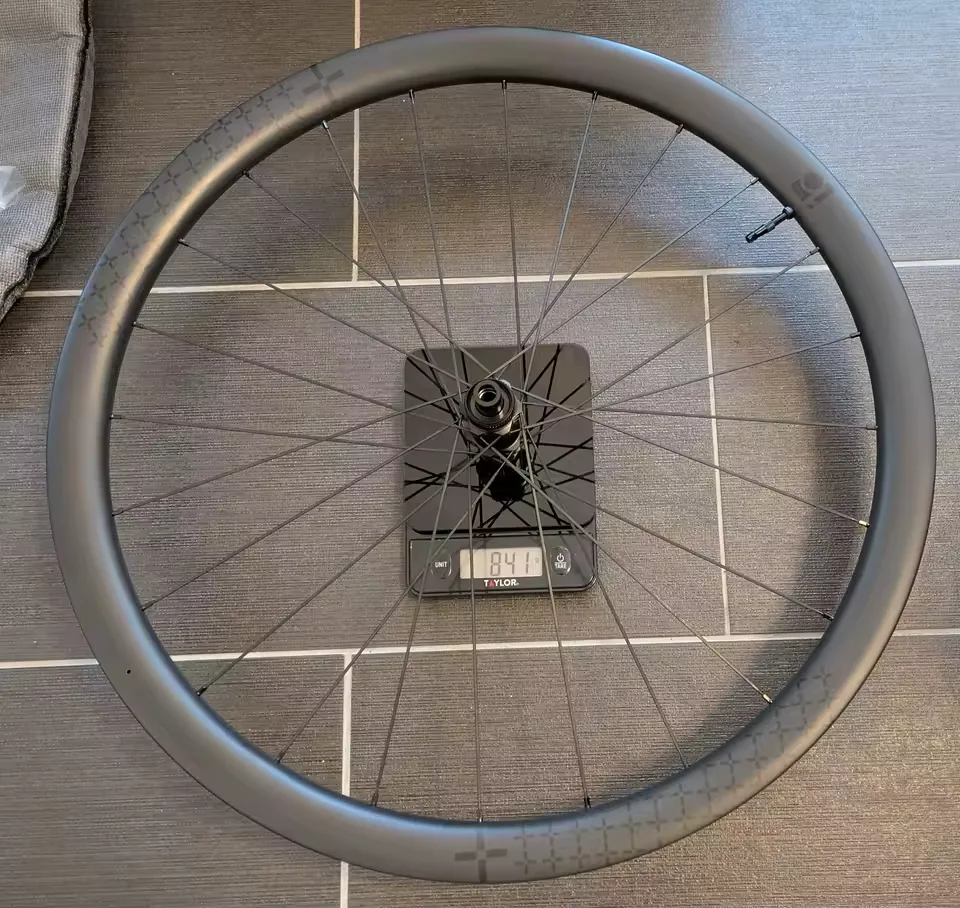

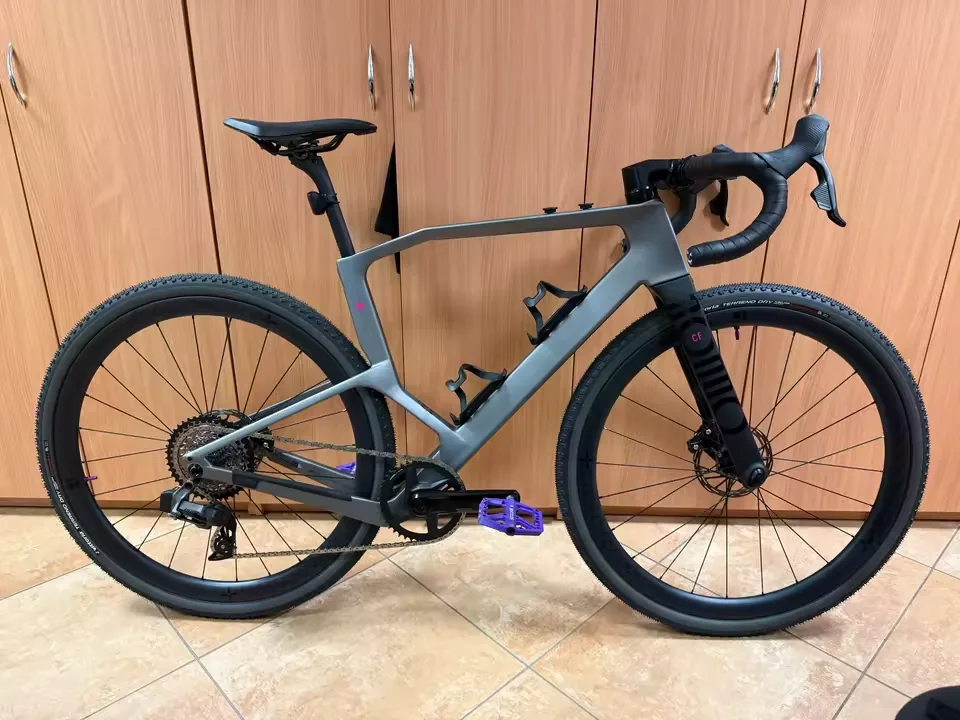

Read the guide →Verified AliExpress Buyer Photos

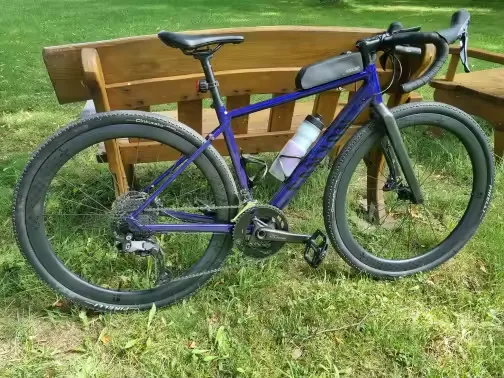

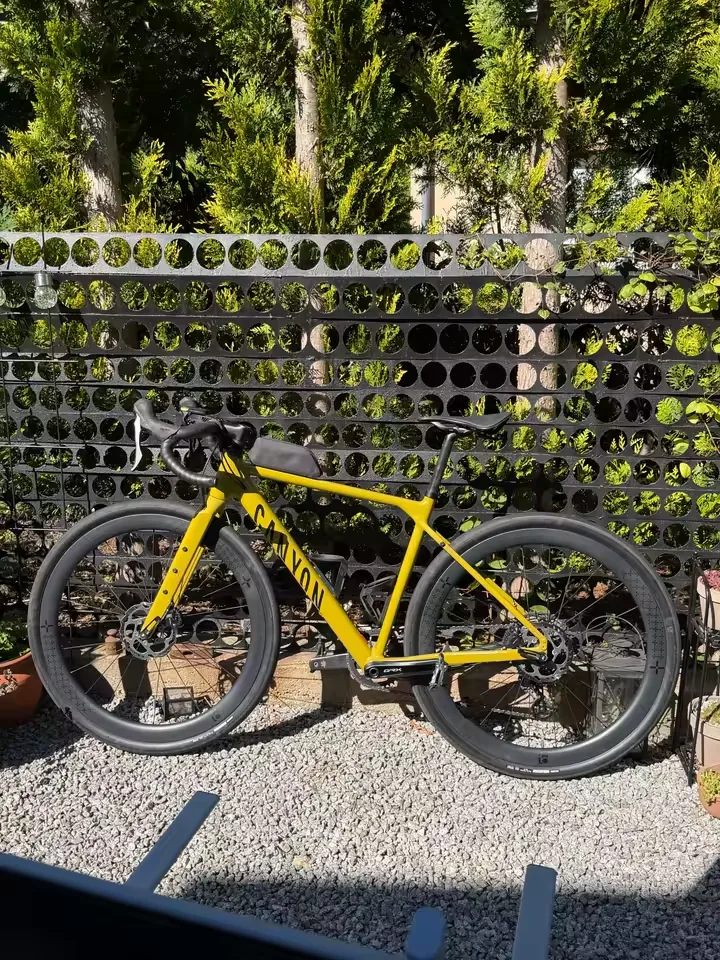

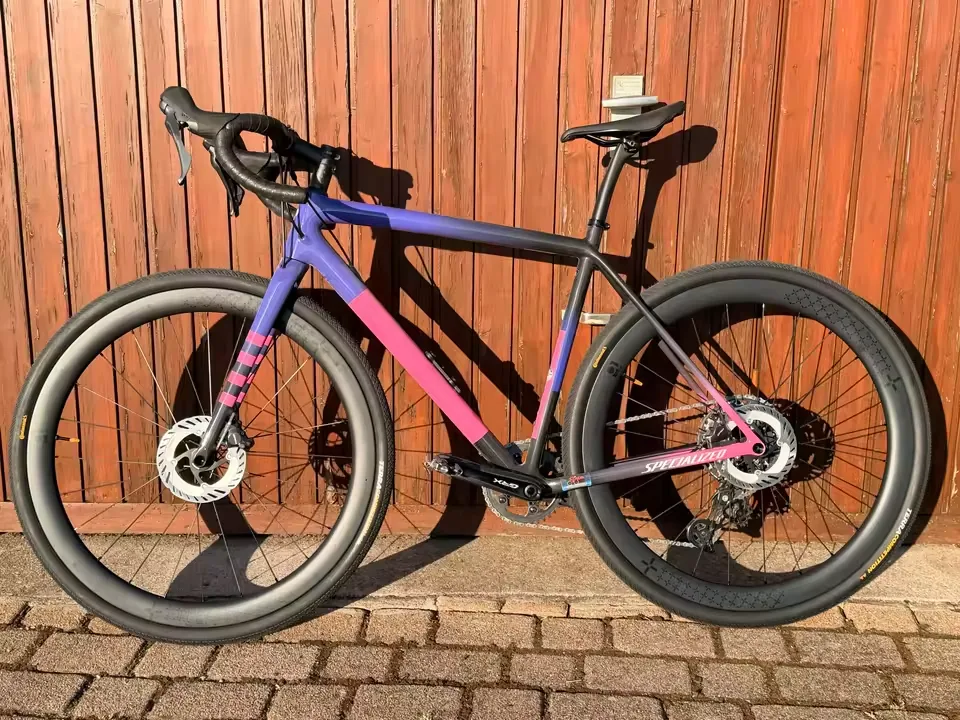

Photos from AliExpress's own "buyer photos" review section for gravel wheels — anonymous by default, so they're shown as a set rather than with an invented name or bike model for each one.
